Industrial & Paint Filters

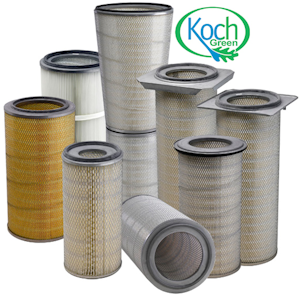

Industrial Cartridge Filters For Gas Turbines and Environmental Dust Collection

  • Available in MERV 11, MERV 12, MERV 14 and MERV 15
  • Replaces OEM manufactured filters
  • Multiple core and end cap options
  • High moisture resistance
  • Multiple media options for different environments:
    • High Flow 100% synthetic spun bond
    • High Efficiency paper
    • Blended Paper with Nano-Fiber efficiency layer on one side
    • High Efficiency melt blown paper

Industrial Cartridge Filters

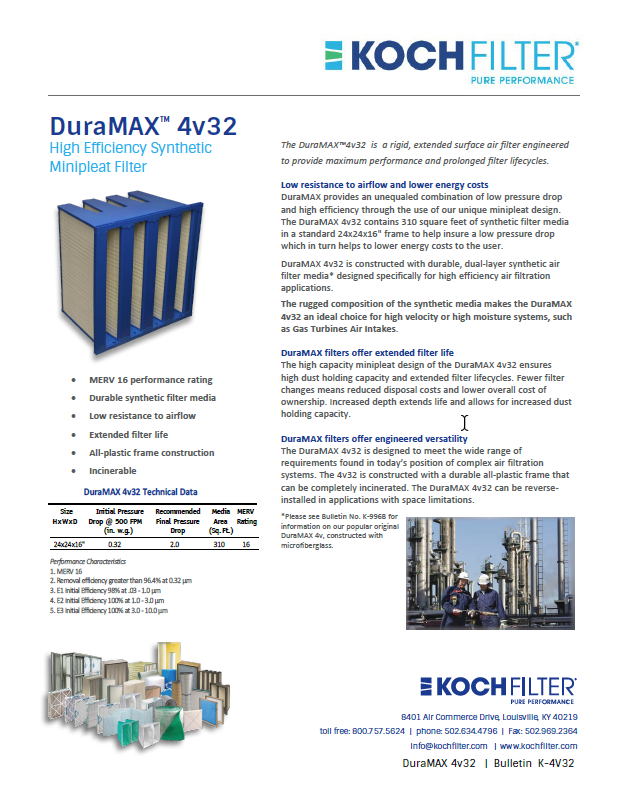

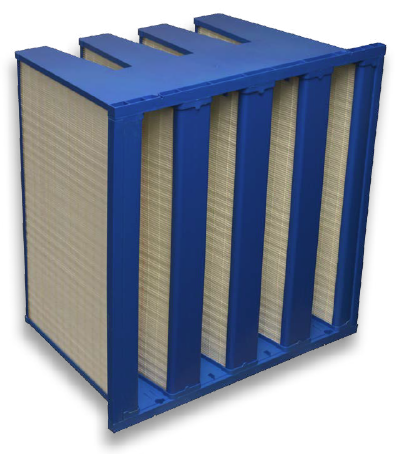

Koch DuraMAX™ 4v32High Efficiency Synthetic Minipleat Filter

  • MERV 16 performance rating
  • Durable dual-layer synthetic filter media in a 16″ deep, incinerable all-plastic frame
  • Increased depth extends life and allows for increased dust holding capacity
  • Minipleat design provides lower pressure drop, which in turn lowers energy costs
  • Ideal choice for high velocity or high moisture systems

blue cube air filter

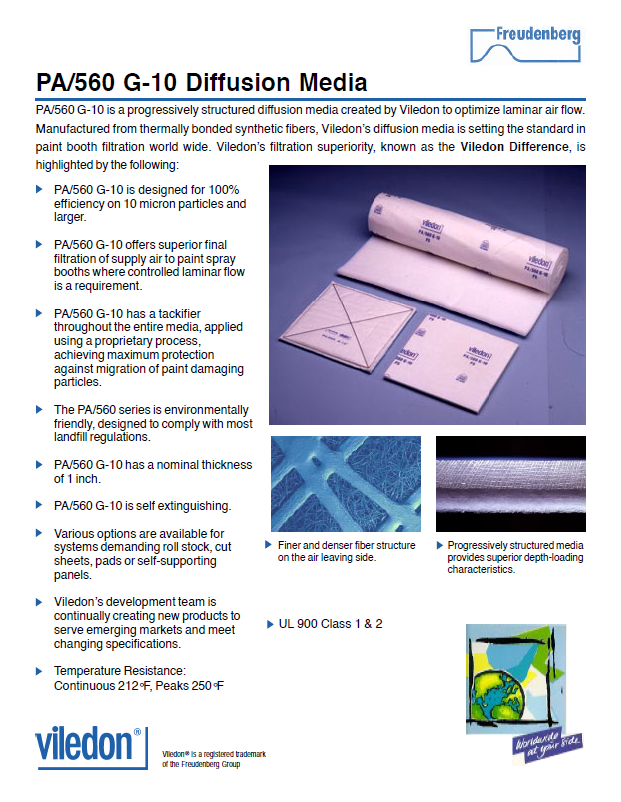

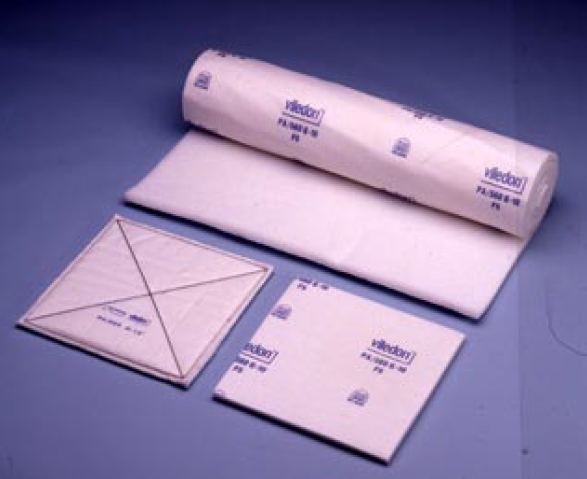

Viledon PA/560 G-10 Diffusion Media

  • Designed for 100% efficiency on 10 micron particles and larger
  • Offers superior final filtration of supply air to paint spray booths where controlled laminar flow is a requirement
  • Has a tackifier throughout the entire media, applied using a proprietary process, achieving maximum protection against migration of paint damaging particles
  • Various options are available for systems demanding roll stock, cut sheets, pads or self-supporting panels
  • Nominal thickness of 1 inch
  • Self extinguishing
  • UL 900 Class 1 & 2

flat diffusion air filter

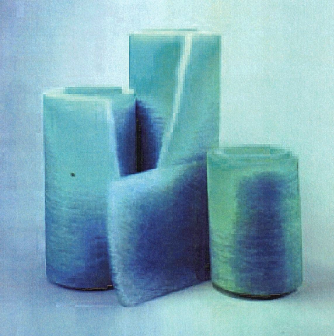

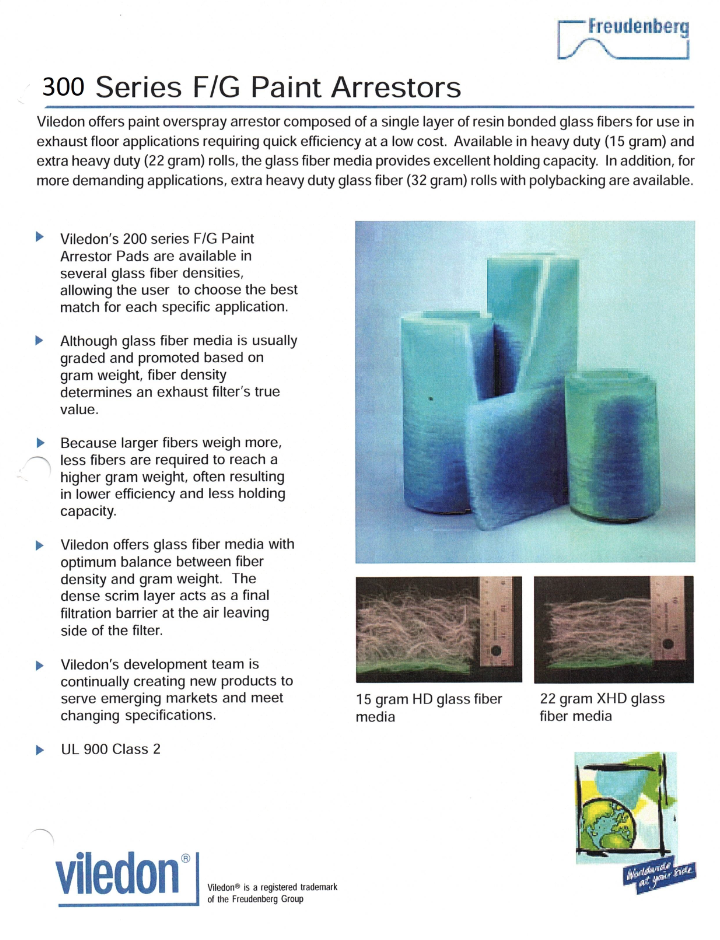

Viledon 300 Series F/G Paint Arrestors

  • Single layer of resin bonded glass fibers available in heavy duty (15 gram) and extra heavy duty (22 gram) rolls.
  • Extra heavy duty glass fiber (32 gram) rolls with poly backing are available
  • Viledon offers glass fiber media with optimum balance between fiber density and gram weight. The dense scrim layer acts as a final filtration barrier at the air leaving side of the filter
  • UL 900 Class 2

3 paint arrestors stacked together

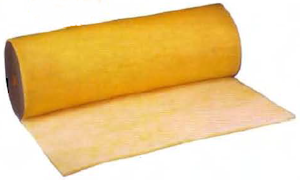

Dustlok® Auto Rolls MERV 7

  • MERV 7 efficiency per ASHRAE 52.2-1999
  • Polyester Media – No Glass Fibers
  • Unique Dustlok® adhesive that will not migrate downstream
  • Spor·Ax® Anti-microbial effectively controls growth of Mold, Mildew, Algae and Fungi on the filter
  • Reinforced Scrim Backing

Dustlok Auto Rolls MERV 7

Please call 800-733-8011 for a free, no-obligation filter survey and proposal!
